Description
Leica GRX1200 GG GNSS Survey System with AX1202 GG Antenna
For sale is a professional Leica GRX1200 GG GNSS Survey Receiver Kit with Leica AX1202 GG antenna, field controller, cables and protective hard carrying case.
The system has been tested and verified to be operational. The receiver powers on correctly, communicates with the included Leica controller and successfully acquires GPS satellites.
The LCD display, keypad, screen backlight and navigation functions operated correctly during testing.

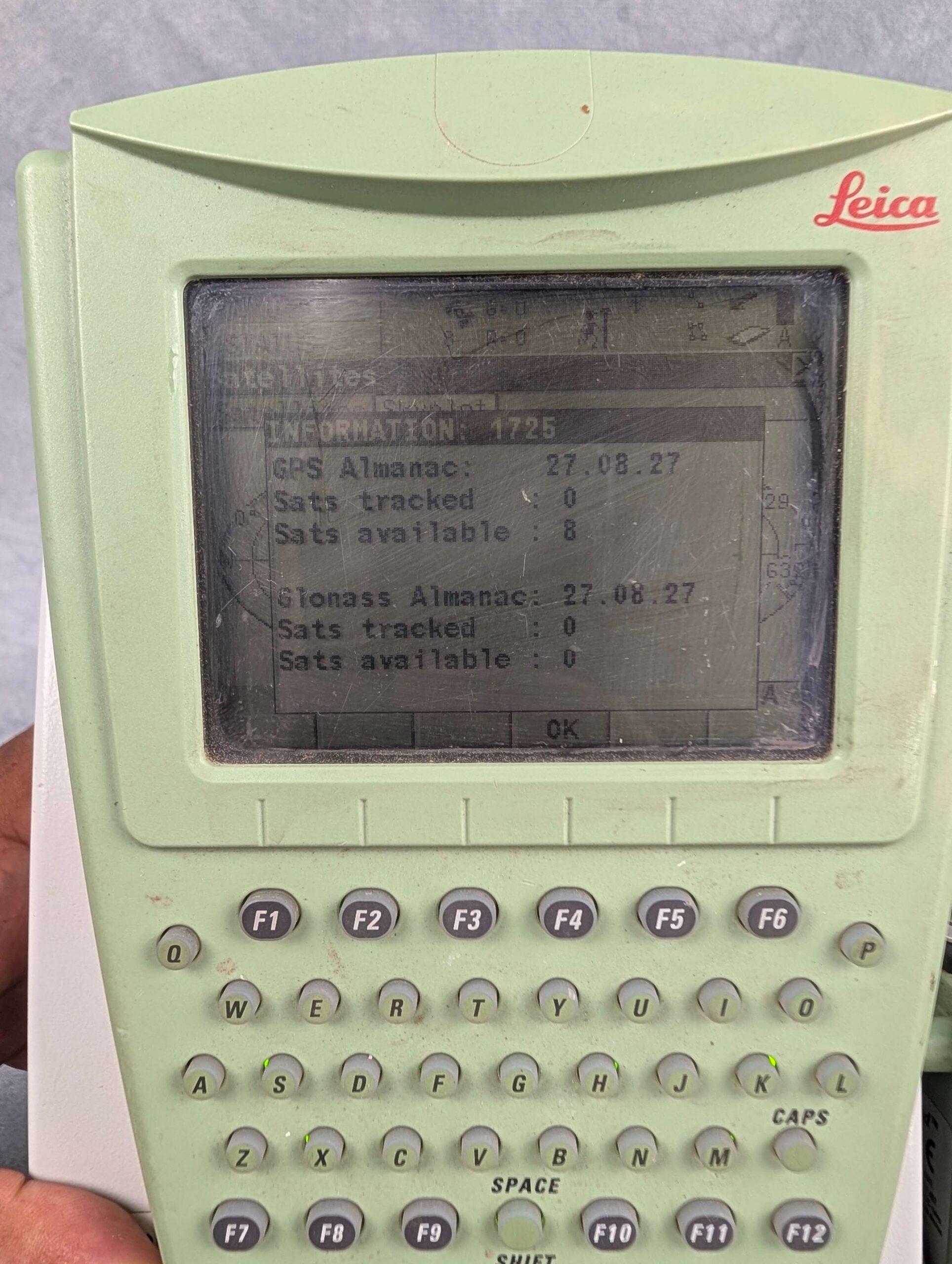

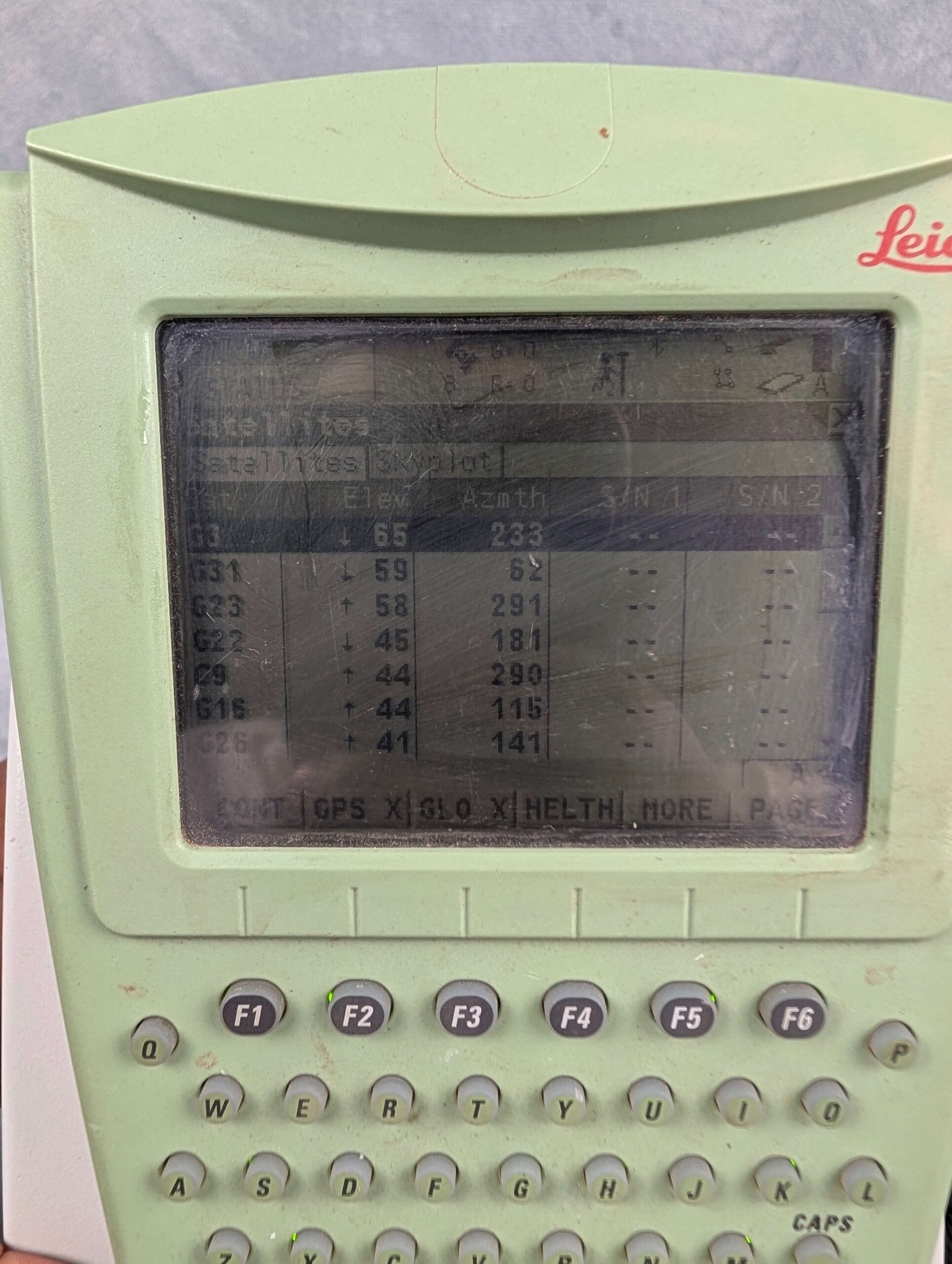

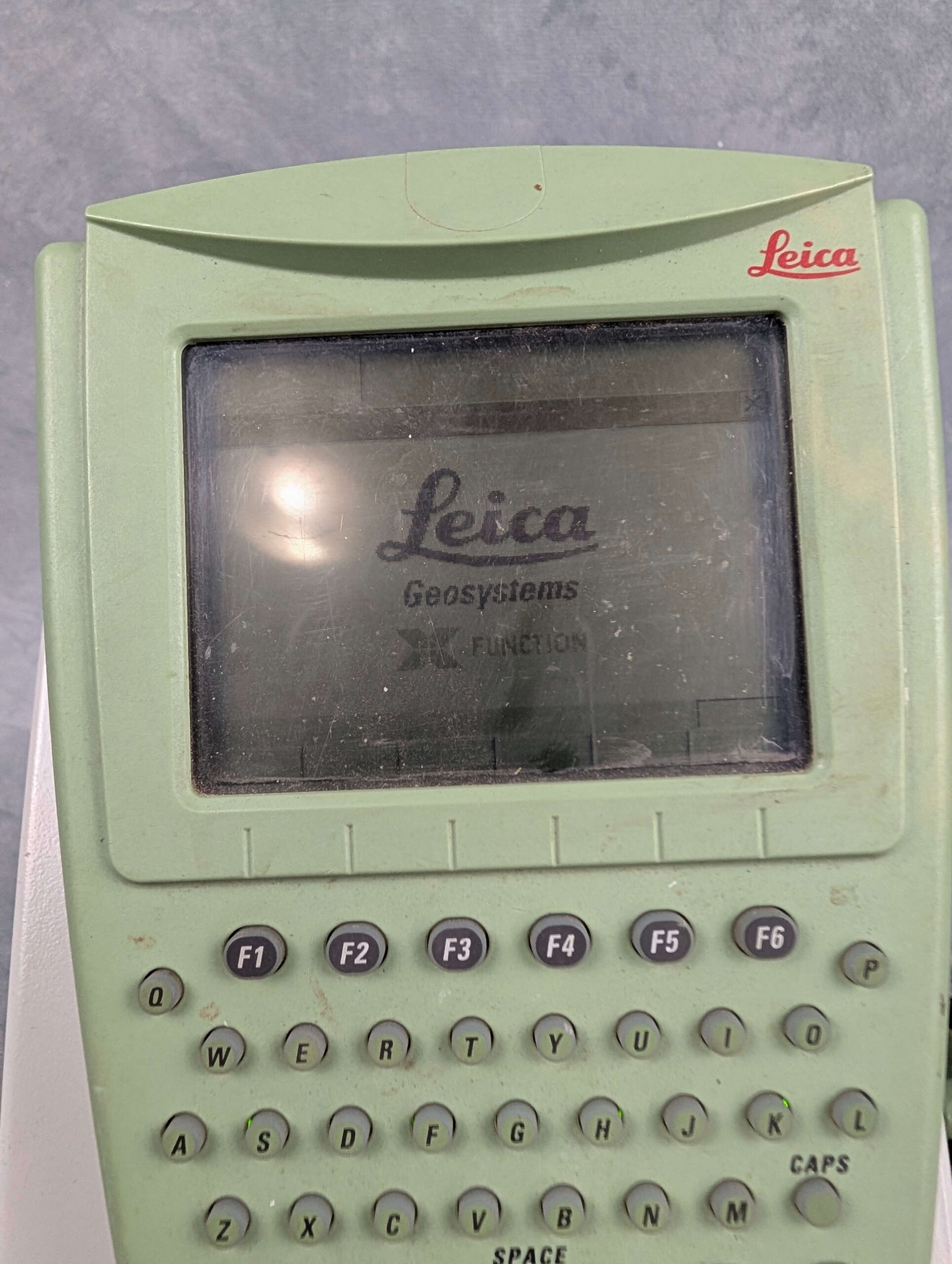

Photographs showing the startup sequence, satellite tracking, satellite status and illuminated keypad are included so buyers can review the tested operating condition of the equipment.
Leica GRX1200 GG GNSS Receiver
Model: Leica GRX1200 GG
The GRX1200 GG is part of Leica’s professional System 1200 GNSS platform and was designed for professional survey and reference-station applications.
Key capabilities include:
- GPS satellite tracking
- GLONASS satellite tracking
- Dual-frequency GNSS surveying
- Professional static GNSS workflows
- RTK-compatible System 1200 workflows
- Control surveying
- Reference station applications
- Monitoring applications
- Professional geodetic data collection
- External survey-grade GNSS antenna support
Leica documentation identifies the GRX1200 Pro GG and AX1202 GG within the GPS System 1200 product family and confirms GPS/GLONASS capability within that system.
Leica AX1202 GG GNSS Antenna
Included is a genuine Leica AX1202 GG survey-grade GNSS antenna.
Features include:
- GPS + GLONASS support
- Dual-frequency GNSS operation
- Designed for Leica System 1200 receivers
- Survey-grade external antenna configuration
- Suitable for professional static and compatible real-time workflows
- Integrated ground-plane style antenna design
The AX1202 GG was an official antenna within Leica’s GPS System 1200 family.
Tested Operation
The system has been tested for basic operation.
Testing performed includes:
- GRX1200 GG powers on successfully
- Receiver communicates with the Leica controller
- GPS satellites acquired
- Satellite tracking/status screen displayed
- LCD display operates correctly
- Keypad tested
- Navigation functions tested
- Screen/keypad illumination tested
No additional precision, calibration, RTK baseline or long-duration field testing has been performed unless specifically shown in the photographs.

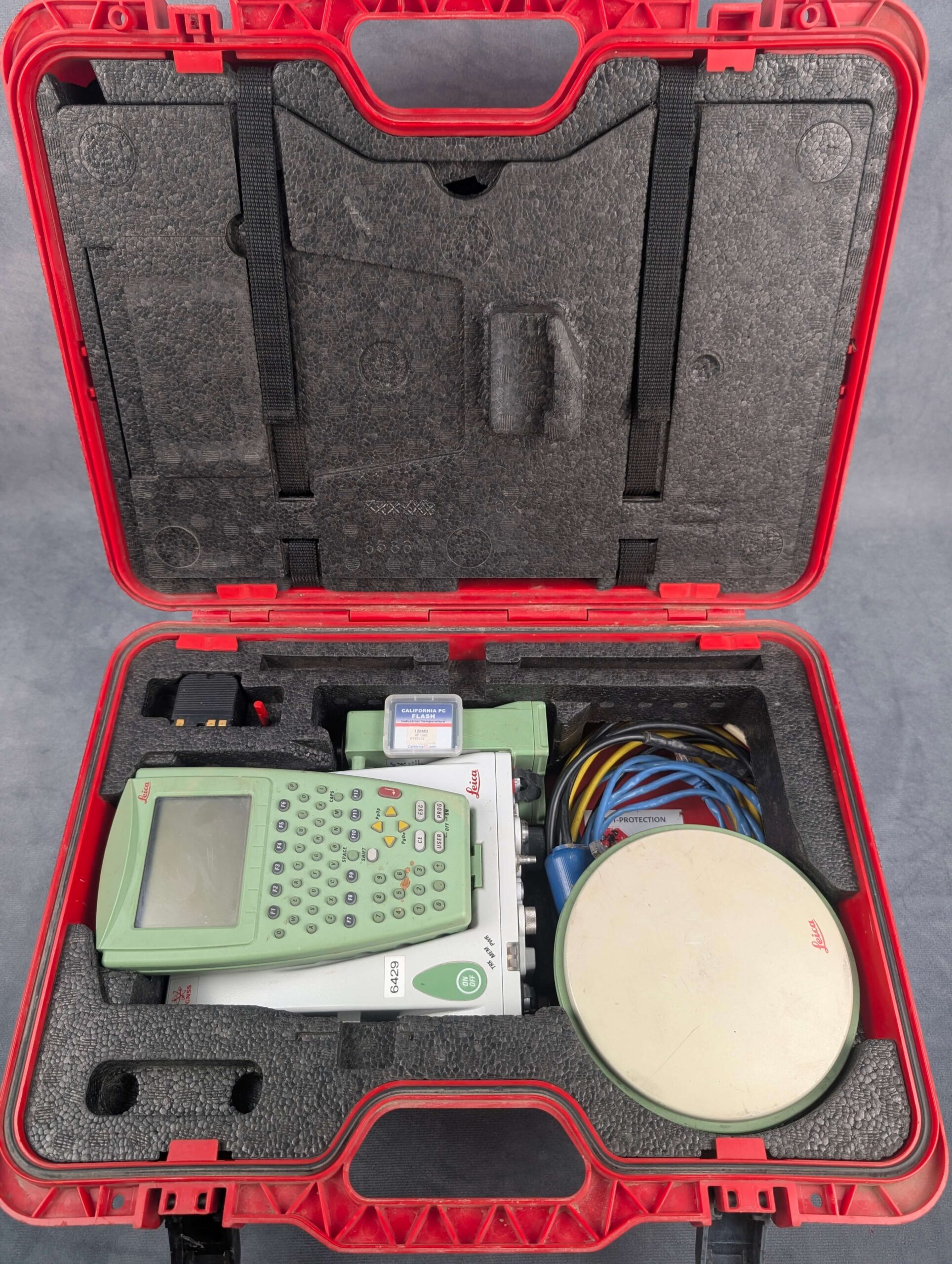

What’s Included
- Leica GRX1200 GG GNSS Receiver
- Leica Field Controller
- Leica AX1202 GG GNSS Antenna
- Leica Battery
- PC Flash Memory Card
- Leica Data Cable
- Leica Communication Cable
- Ethernet Cable
- Additional Interface Cables shown
- Protective Hard Carrying Case
- Additional accessories shown in the photographs
Only the items shown in the listing photographs are included.
No tripod, tribrach, survey pole, charger or additional equipment is included unless specifically pictured.
Condition
This is used professional surveying equipment in good overall operating condition.
The equipment shows normal cosmetic wear consistent with previous professional field use.
Possible cosmetic signs of use include:
- Surface scratches
- Scuffs
- Marks
- General housing wear
- Normal wear around buttons, ports and connection areas
The equipment remains operational based on the testing described above.
Please review all photographs carefully, as the images form part of the condition and included-items description.
Applications
This Leica GNSS system may be suitable for users maintaining established Leica System 1200 workflows, including:
- Land surveying
- Static GNSS observations
- Survey control
- Reference station applications
- Monitoring
- GPS/GLONASS data collection
- Geodetic surveying
- Existing Leica System 1200 installations
- Backup or replacement GNSS equipment
Leica historically deployed GRX1200-series receivers in professional reference-station and monitoring installations.
Important Compatibility Information
The Leica System 1200 platform is an older-generation professional GNSS system.
Buyers should verify compatibility with their existing Leica controller, firmware, software, radio/modem configuration, correction source and field workflow before purchasing.
Calibration history is unknown.
No software licenses, subscriptions or functionality beyond what is visibly shown or specifically described in this listing are represented as included.
Buy, Sell & Trade Survey Equipment
EMV Consulting buys, sells and trades professional new and pre-owned surveying, GNSS, construction and positioning equipment.
Have surplus Leica, Trimble, Topcon or other professional survey equipment? Contact us regarding trade-in or outright purchase opportunities.
Shipping & International Buyers
Professional surveying equipment will be carefully packaged for shipment.
International buyers are responsible for any applicable import duties, taxes, brokerage fees or customs charges imposed by their country.
SKU: EMV-1728
